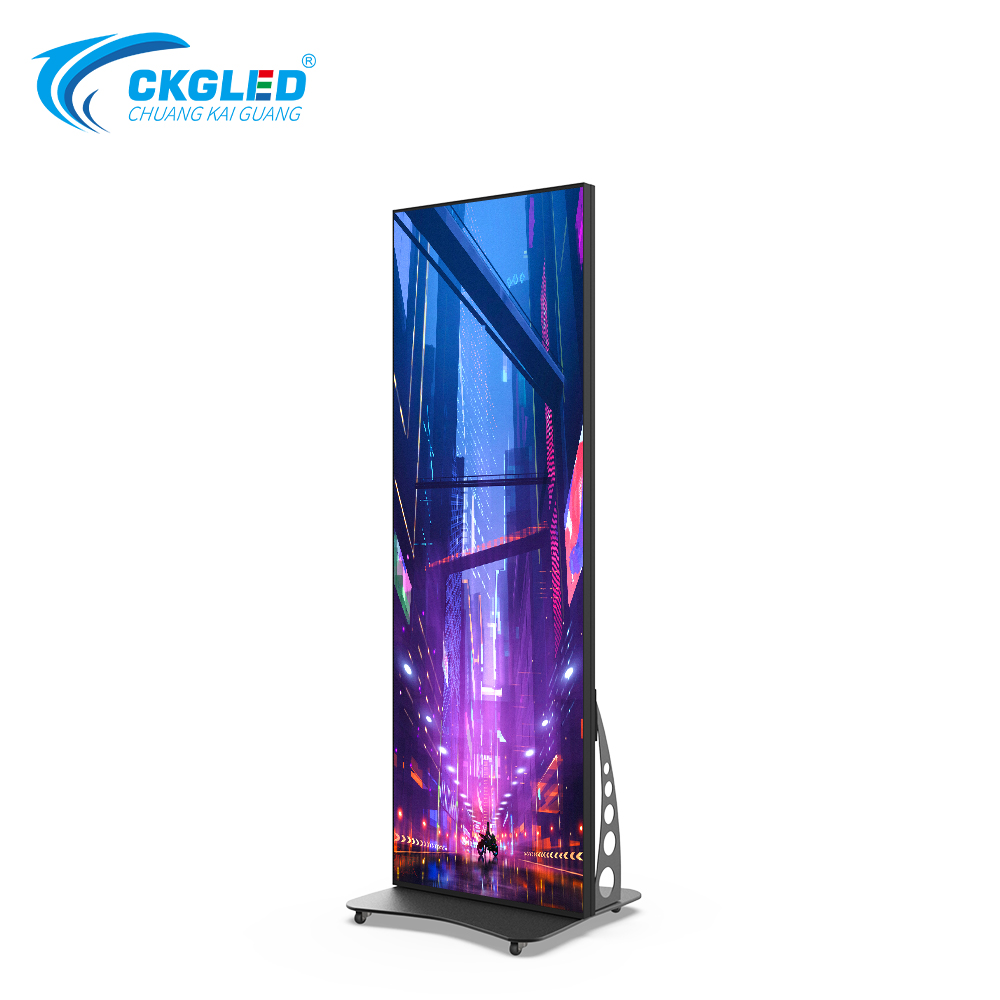

LED Poster P2.25 Indoor

With Wheels.

Easy to move.

· Multiple inputs.

HDMI / USB / Ethernet / WI-FI.

· Acrylic board protective design.

Protect the poster from water and accidental impact.

· Easy content updating.

Wireless control via WI-FI.

· Connectivity to assemble into a big & seamless screen.

· Wooden case & Flight case optional.

· High definition.

LED posters feature high resolution and high pixel density.

Provide high-definition and high-quality contents.

PARAMETERS

Product Series Indoor LED Poster

Pixel Pitch（mm) 2 2.5

LED Lamp Type SMD2020

Pixel Density 160,000dots/㎡

Scan Frequncy 1/32

Module Size（mm）320*160

Cabinet Size（mm) 640*1920

Cabinet Material Aluminum + Steel

Cabinet weight 39KG

Viewing Angle H:140°/ V:160°

Grey Scale (bits) 16Bit

Frame Rate(HZ) 60Hz

Refresh Rate(HZ)≥3840Hz

Brightness(cd) 1000

Input Voltage(V) AC 100~240V

Ave. Power Consumption(W/㎡)220

Max Power Consumption(W/㎡) 600

IP Grade IP43

InputHDMI / ETHERNET / USB / WI-FI

MaintenanceFront Service

Working humidity10～85% RH

Working Temperature-30 - 60 ℃

Life span(H)100,000

CertificateCCC / RoHS / CE / EMC / FCC
