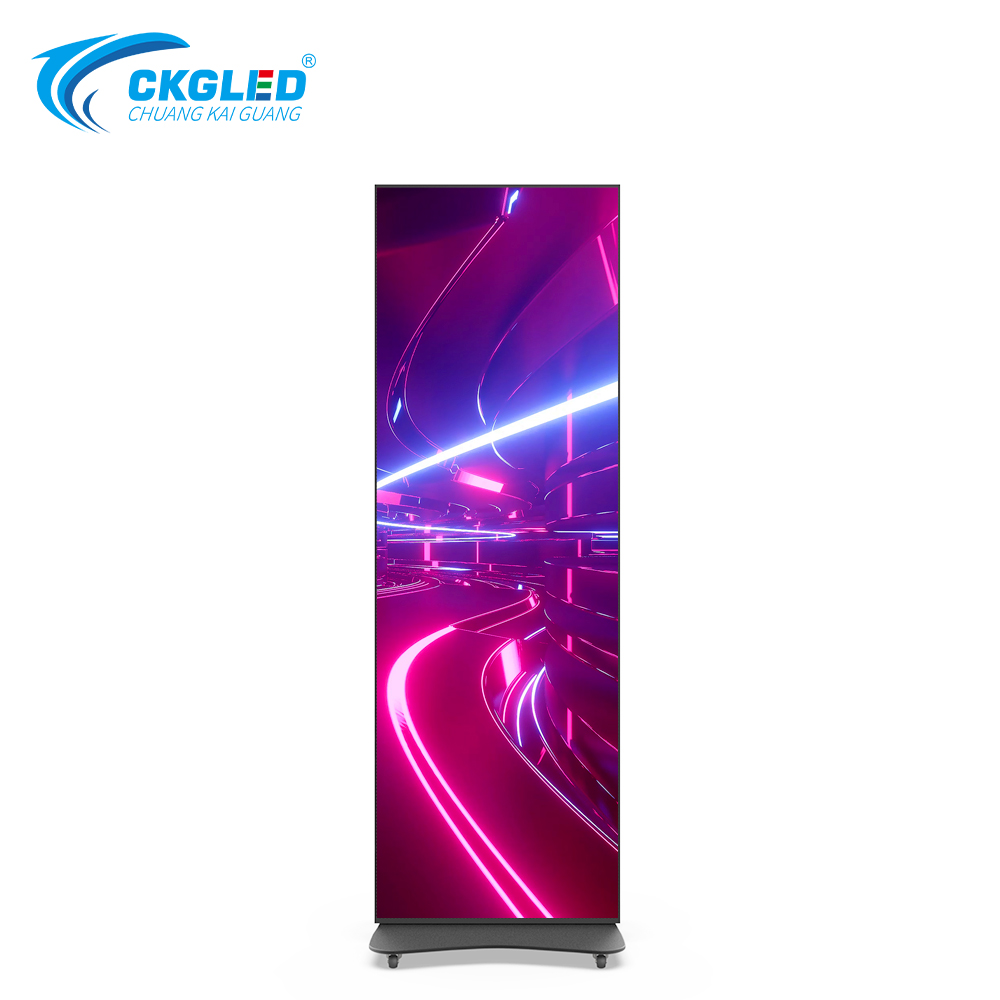

LED Poster P1.53 Indoor

· With Wheels.

Easy to move.

· Multiple inputs.

HDMI / USB / Ethernet / WI-FI.

· Acrylic board protective design.

Protect the poster from water and accidental impact.

· Easy content updating.

Wireless control via WI-FI.

· Connectivity to assemble into a big & seamless screen.

· Wooden case & Flight case optional.

· High definition.

LED posters feature high resolution and high pixel density.

Provide high-definition and high-quality contents.

PARAMETERS

SPECIFICATIONS

Product Series Indoor LED Poster

Pixel Pitch（mm）1.53

LED Lamp Type SMD1212

Pixel Density 422,500dots/㎡

Scan Frequncy 1/52

Module Size（m) 320*160

Cabinet Size（m) 640*1920

Cabinet Material Aluminum + Steel

Cabinet weight 39kg

Viewing Angle H:140°/ V:160°

Grey Scale (bits) 16Bit

Frame Rate(HZ) 60Hz

Refresh Rate(HZ) ≥3840Hz

Brightness(cd) 800

Input Voltage(V) AC 100~240V

Ave. Power Consumption(W/㎡) 220

Max Power Consumption(W/㎡) 600

IP Grade IP43

Input HDMI / ETHERNET / USB / WI-FI

Maintenance Front Service

Working humidity 10～85% RH

Working Temperature -30 - 60 ℃

Life span(H) 100,000

Certificate CCC / RoHS / CE / EMC / FCC
